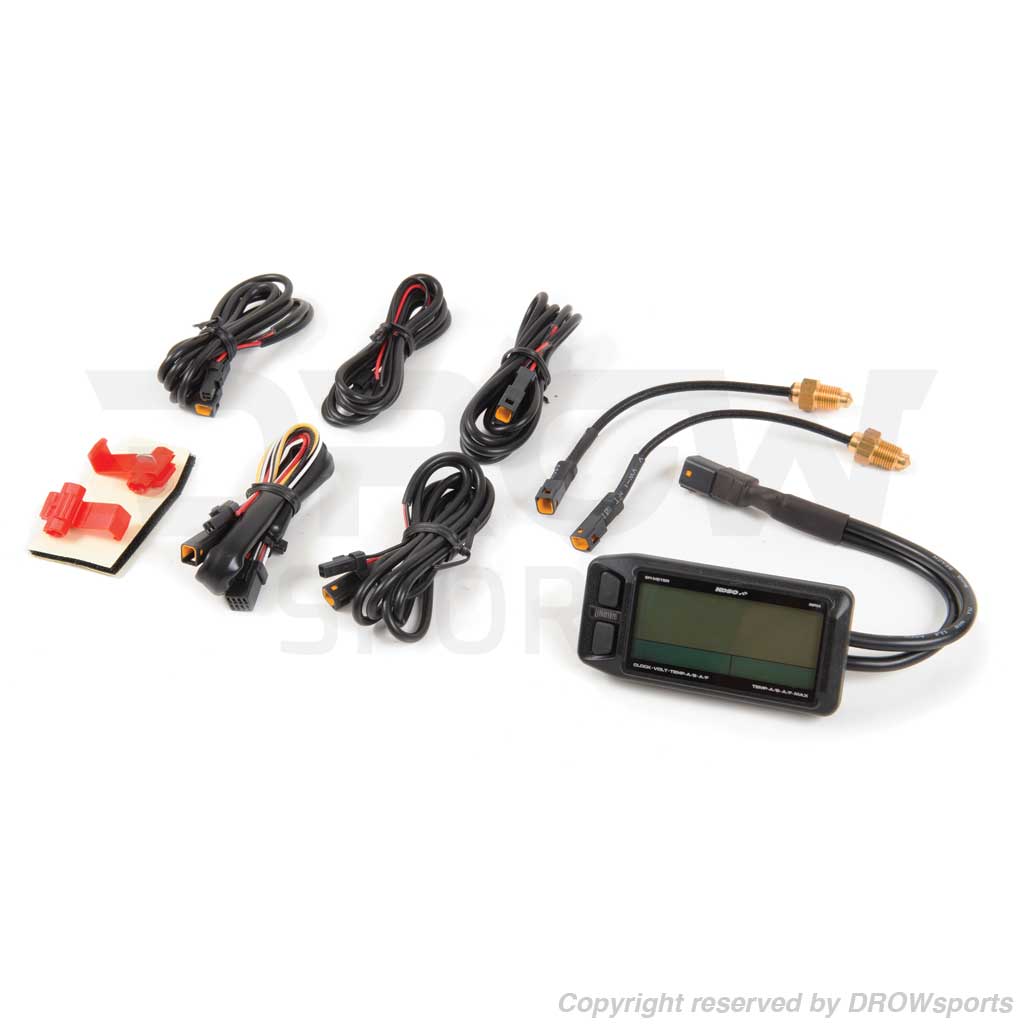

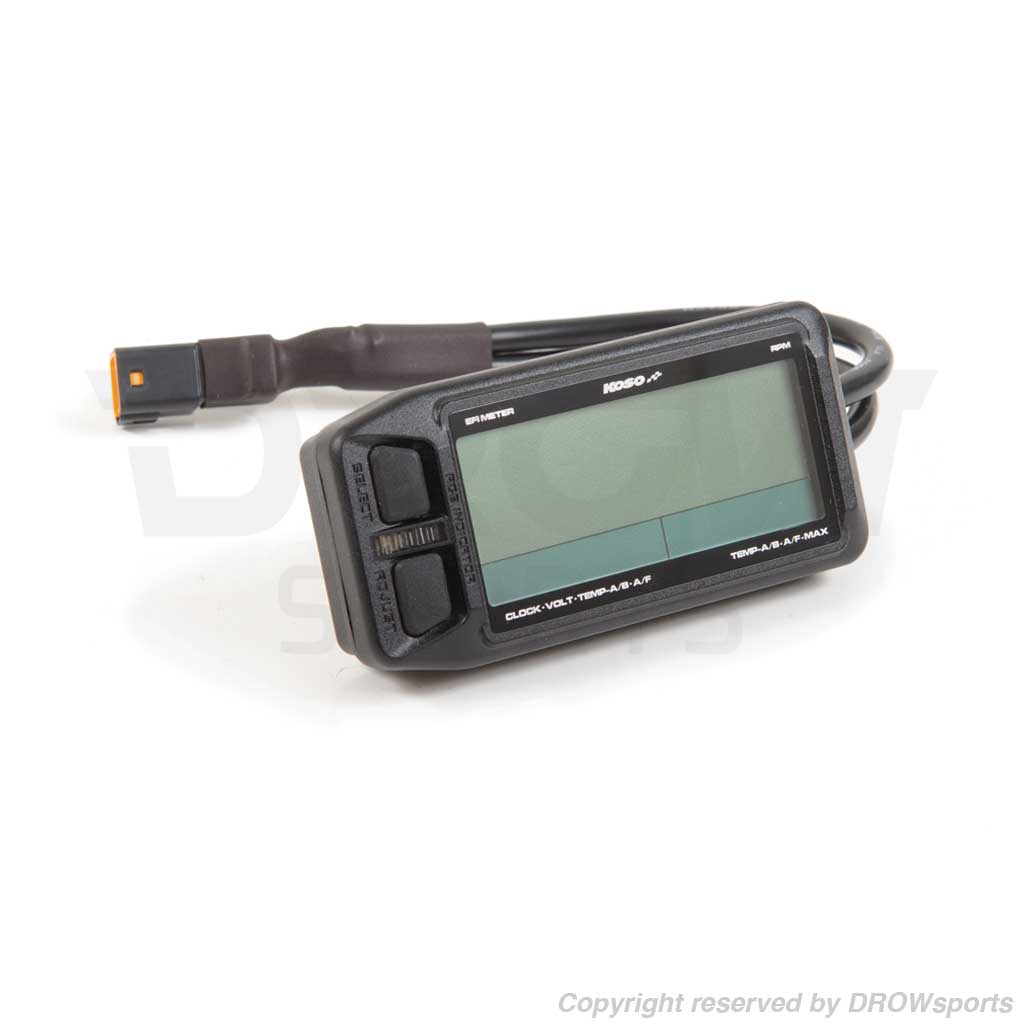

KOSO EFI Multifunction Tachometer (Discontinued)

The KOSO EFI Multifunction Tachometer is en extremely adjustable gauge. This is completely universal and designed to work and function as temperature and tachometer. The cluster gauge multifunctions as a tachometer, multi-temperature reader, and air/fuel ratio function. The large screen allows for easy to read graph bar and RPM digits. The screen is designed to be easy to read even at high speeds. The unit has built-in shift light and temperature warning lights to help maintain a safe engine condition. This also includes voltage and clock functions too. Be sure to purchase any additional sensors or plugs

Features

Digital tachometer Display range : 0~20 000 RPM
Display unit : 100 RPM
Level tachometer Display range : OFF / 0~10 000 / 15 000 / 20 000 RPM
Graph bar tachometer Adjustable RPM scale : 10 000, 15 000 or 20 000 RPM
Shift light Setting range : 5 000~20 000 RPM
Setting unit : 100 RPM
Max RPM record Display range : 0~20 000 RPM
Stroke / piston setting Setting range :
2 stroke : 1, 2, 3, 4, 6 pistons
4 stroke : 1, 2, 4, 6, 8, 10, 12 pistons
Thermometer Setting range : °C or °F
Thermometer A/B Display range : 0~250 °C (32~482 °F)
Display unit : 0.1 °C (°F)
Thermometer alarm Setting range : 60~250 °C (140~482 °F)
Setting unit : 1 °C (°F)
Max temperature record Display range : 0~250 °C (32~482 °F)
Optional Air/Fuel ratio output (narrow band) Display range : 12.1~16.8
Display unit : 0.1
Clock 24 H
Volt meter (input power needed, can’t work with CR 2032) Display range : DC 8.0~18.0 V
Display unit : DC 0.1 V
Indicator lights
RPM shift light (Red)
Temperature A alarm (Blue)
Temperature B alarm (Green)
Power CR 2032 (lifetime ±2 years)
External power DC 12V
Meter standard JIS D 0203 S2
Meter size 87.5 x 42 x 20.8 mm
Meter weight ±72.4 g
