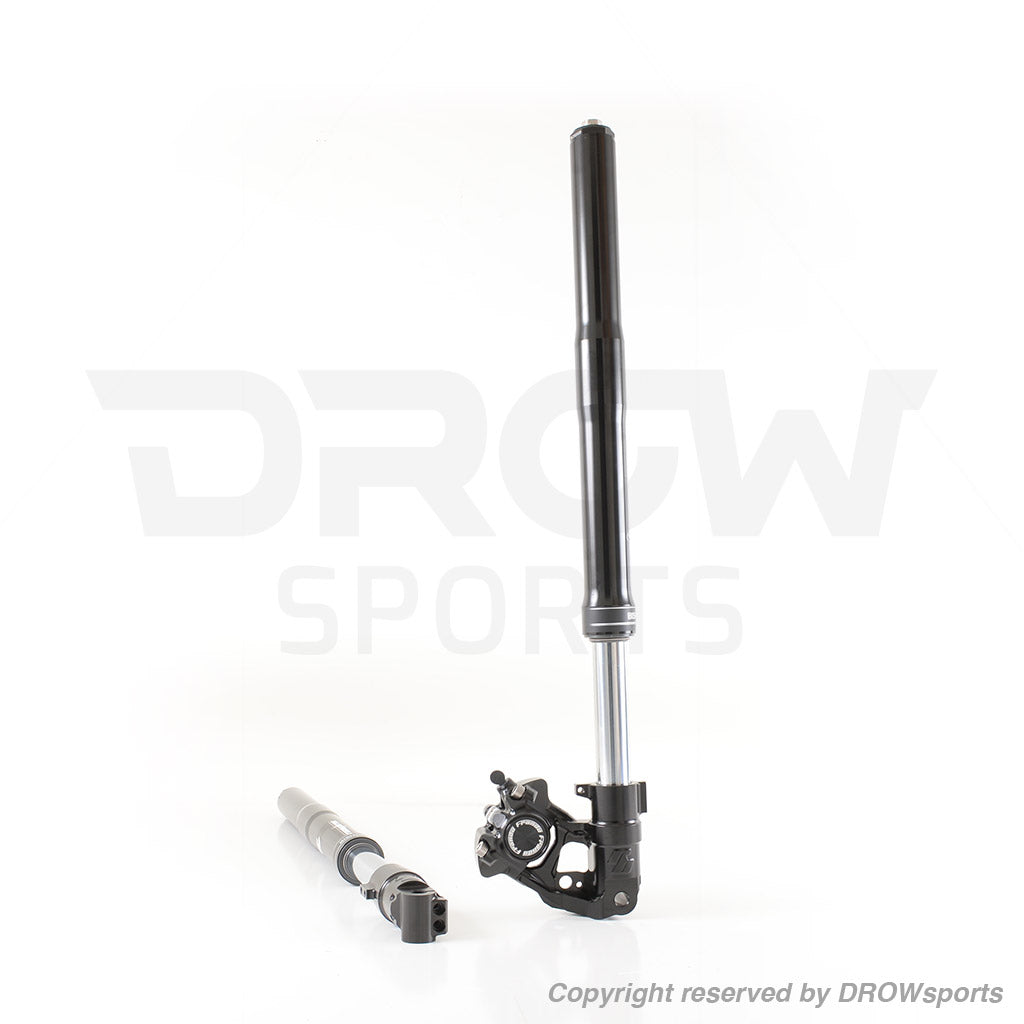

RacingBros BISHOP 31 Full Forks for Honda Grom Monkey Dax (Radial Caliper)

Stock forks holding your Grom back? The RacingBros BISHOP 31 Full Forks are a complete, bolt-on front-end upgrade built for riders who actually push their mini — track days, canyon carving, or just wanting a front end that doesn't dive and wallow every time you grab a handful of brake.

This is a full fork assembly, not just an internal cartridge kit, so there's no tearing down your OEM legs. RacingBros' BISHOP damping system replaces the crude stock spring-and-oil setup with a properly tuned cartridge that gives you real compression and rebound control, so the front end stays composed under hard braking and holds a line mid-corner instead of packing down.

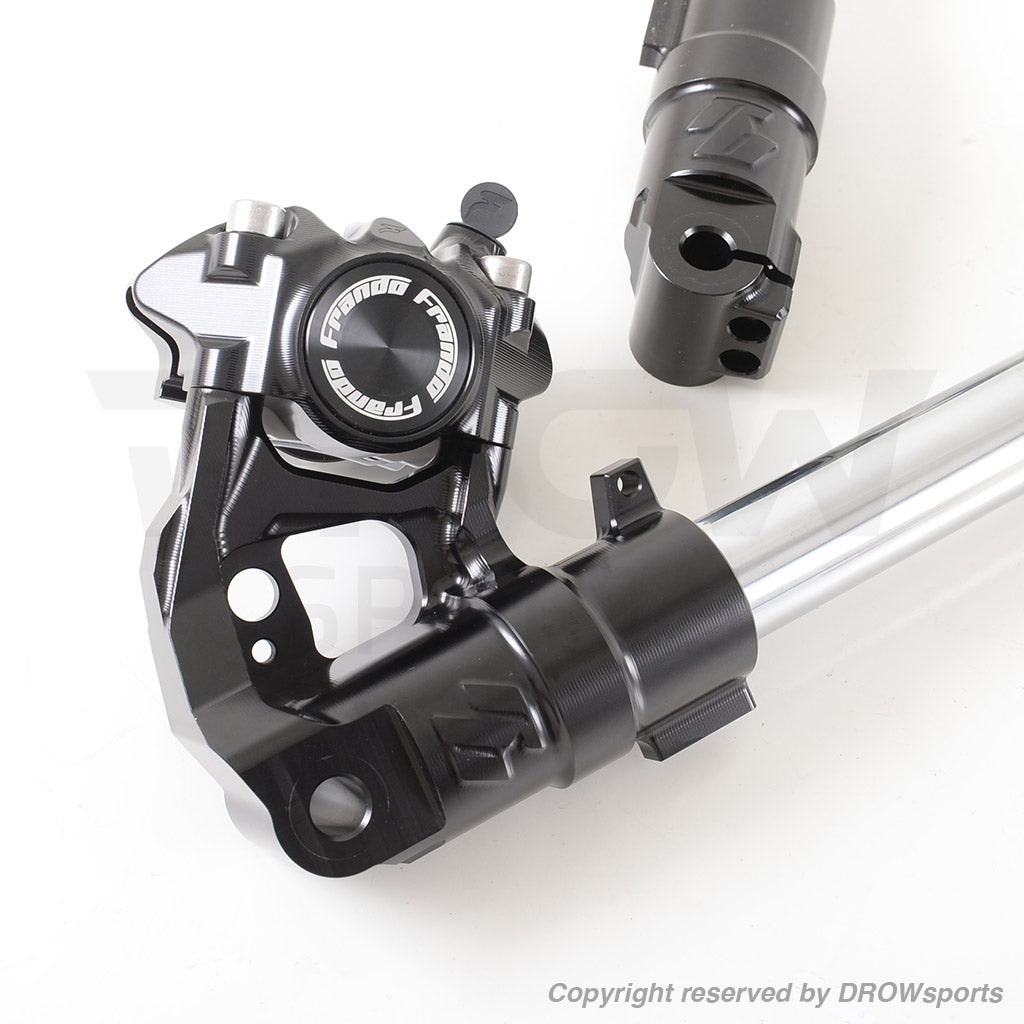

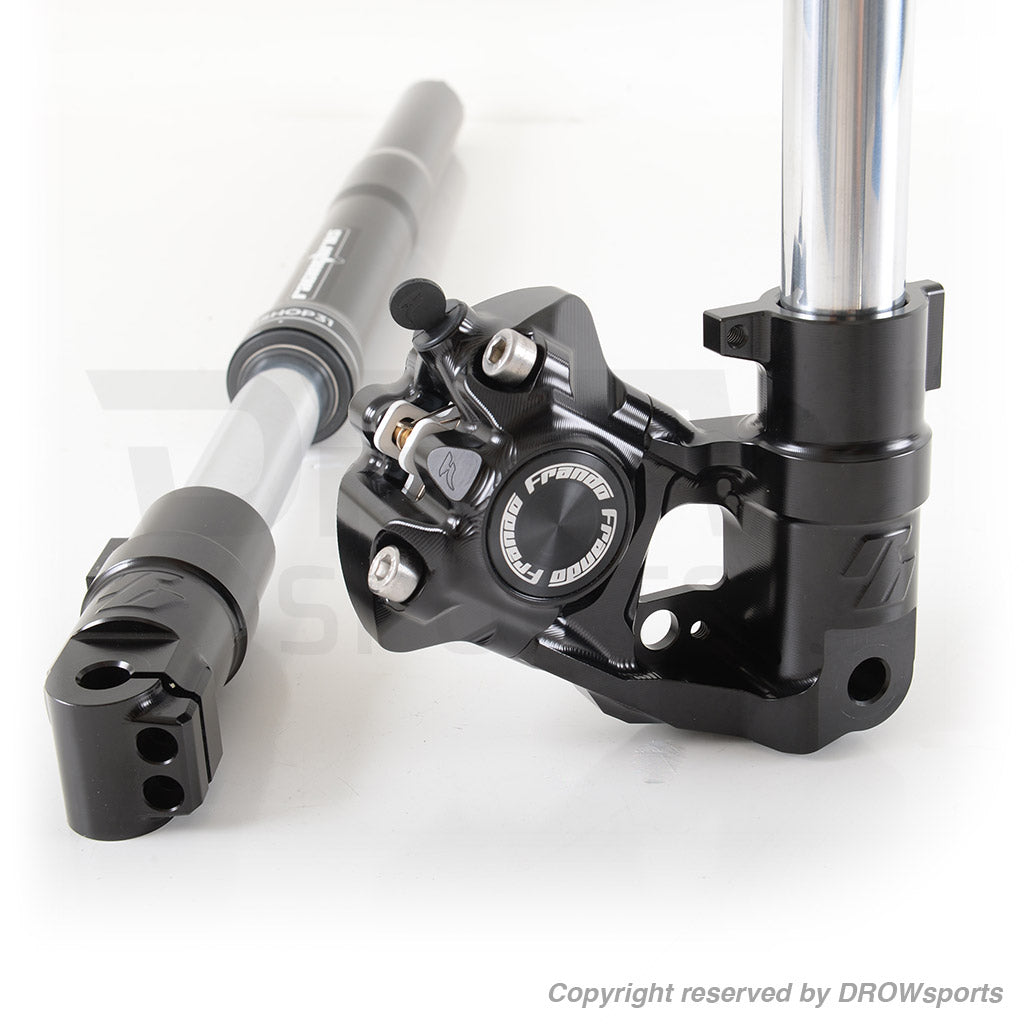

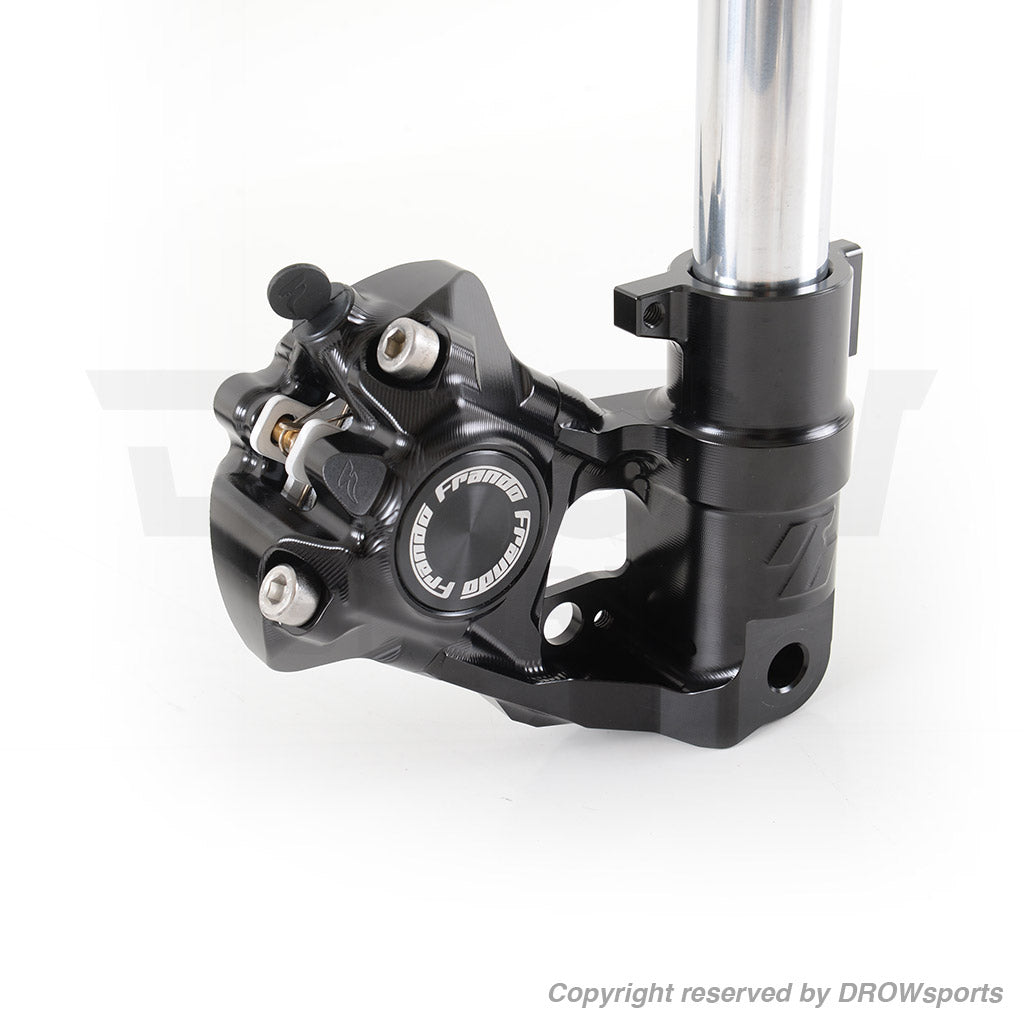

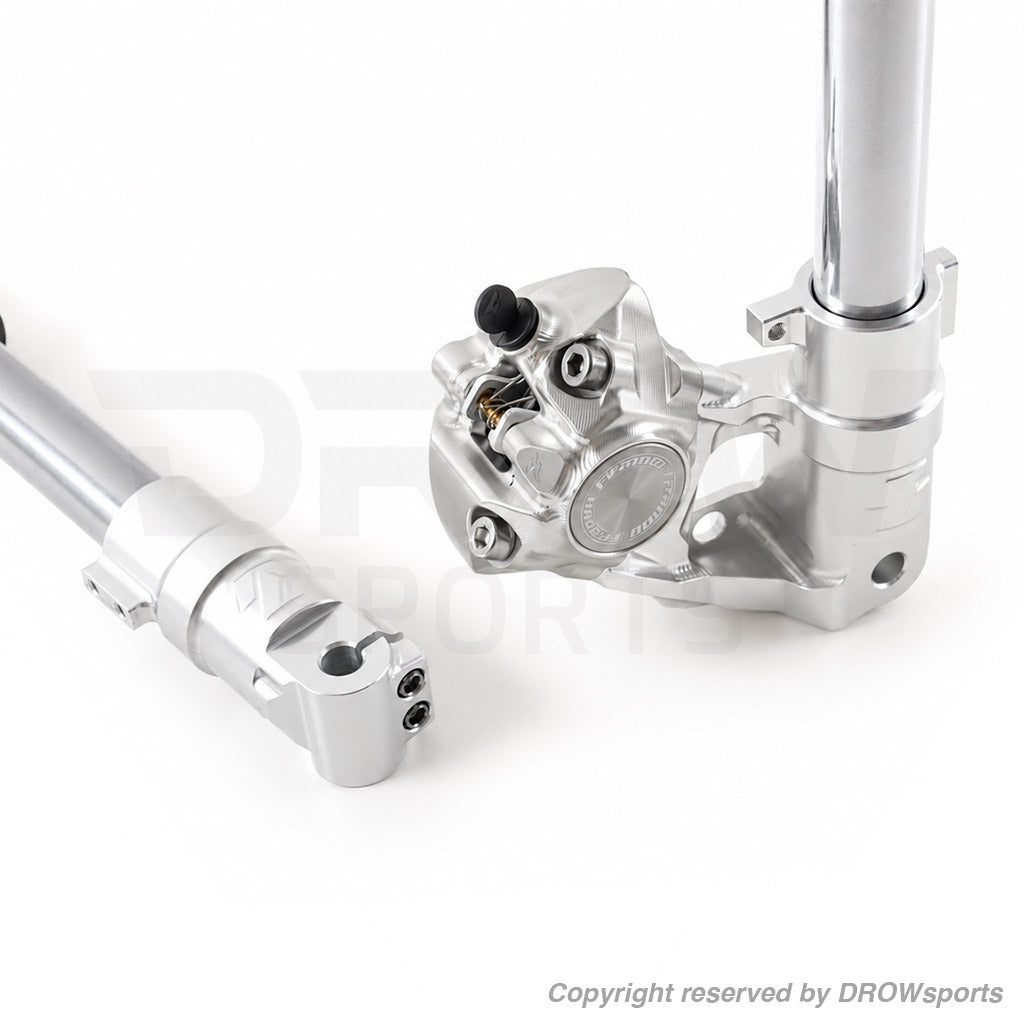

The big story here is the radial caliper mount version. The fork lowers are machined to accept a radial-mount caliper, and we've paired them with the Frando CNC FCC-660 — a fully CNC-machined radial caliper that clamps 34mm pistons onto your rotor for braking power that finally matches the chassis. Together, this is the single biggest handling and stopping upgrade you can bolt to the front of a Grom, Monkey or Dax 125.

Fits:

• Honda Grom / MSX125
• Honda Monkey 125
• Honda Dax / ST125

Features:

• Complete BISHOP 31 full fork assembly — bolt-on, no OEM fork teardown required
• Tunable compression & rebound damping for real front-end control
• Radial caliper mount lowers, ready for the included Frando FCC-660
• Frando FCC-660 CNC radial caliper — 2x 34mm piston
• Fork tube diameter: 31mm
• Fork travel: 4" (101mm)
• Spring rate: 5.5N/mm, 6.5N/mm, 7.5N/mm
• Axle diameter: 12mm
• Radial mount bolt spacing (P.C.D.): 60mm
• Max rotor diameter: 220mm

Features:

• RacingBros Adjustable Front Fork Kit with Rebound/Compression Adjustment
• RacingBros Fork Tube
• Fork Travel = 4"
• Lycan Seal and Wipers
• Nemoto Gen 2 CNC Bottom Fork Lug
• Completely assembled.

Spring Rate Options:

• 5.5N/mm fork spring: Riders under 195lbs
• 6.5N/mm fork spring: Riders 190lbs to 285lbs
• 7.5N/mm fork spring: Riders above 280lbs

Nemoto Fork Lug Color:

• BLACK
• SILVER
