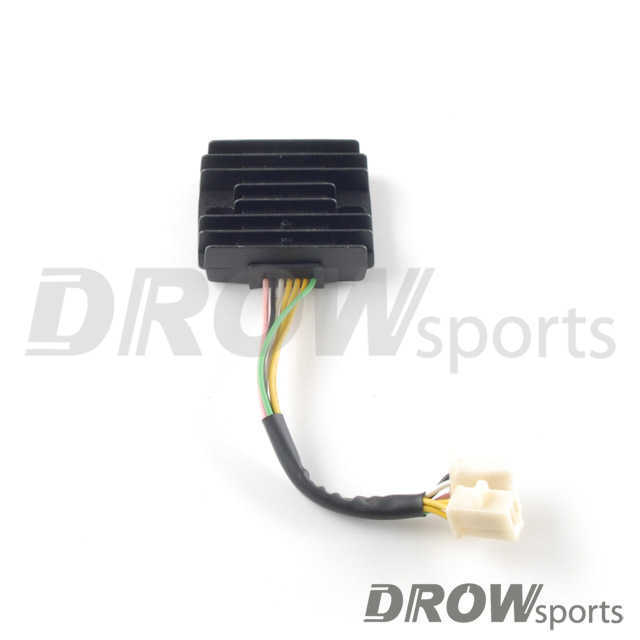

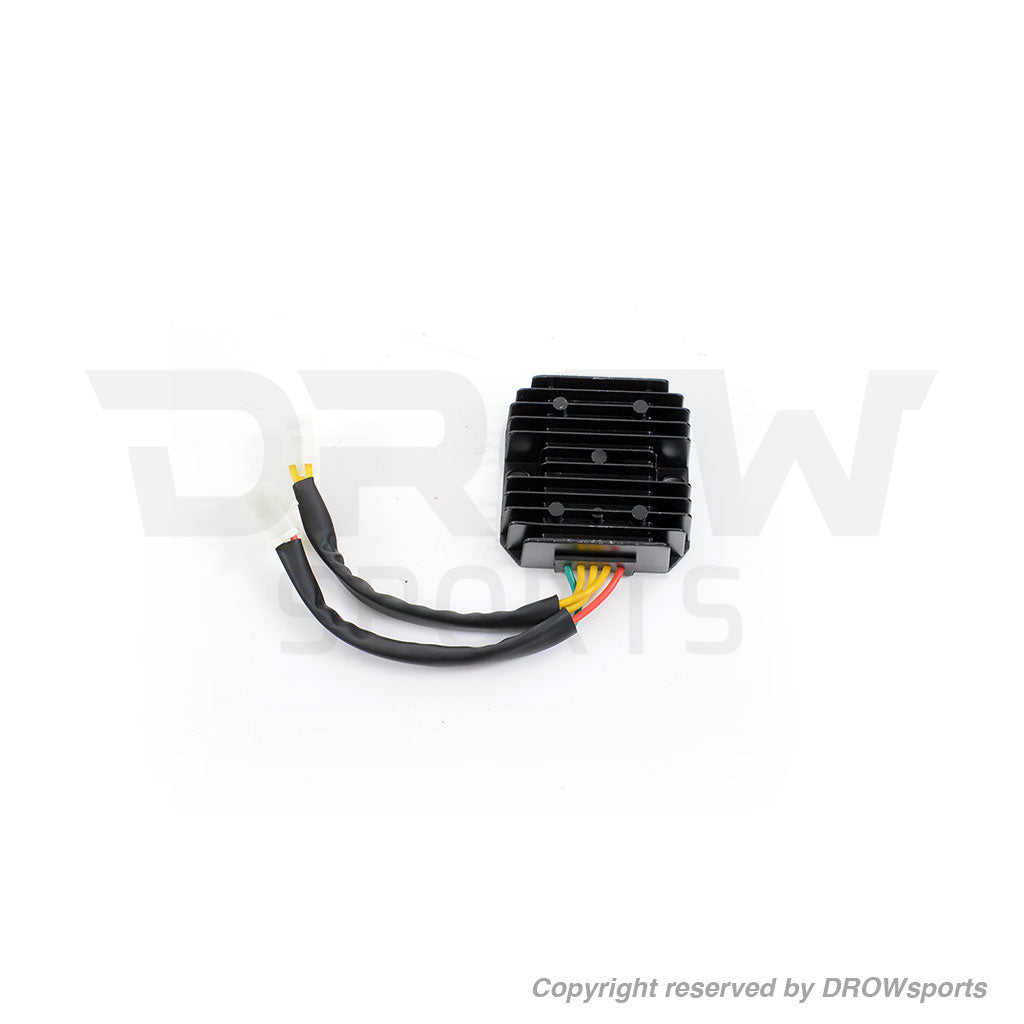

GY6 150cc 11 Pole Regulator Rectifier

UPDATE:

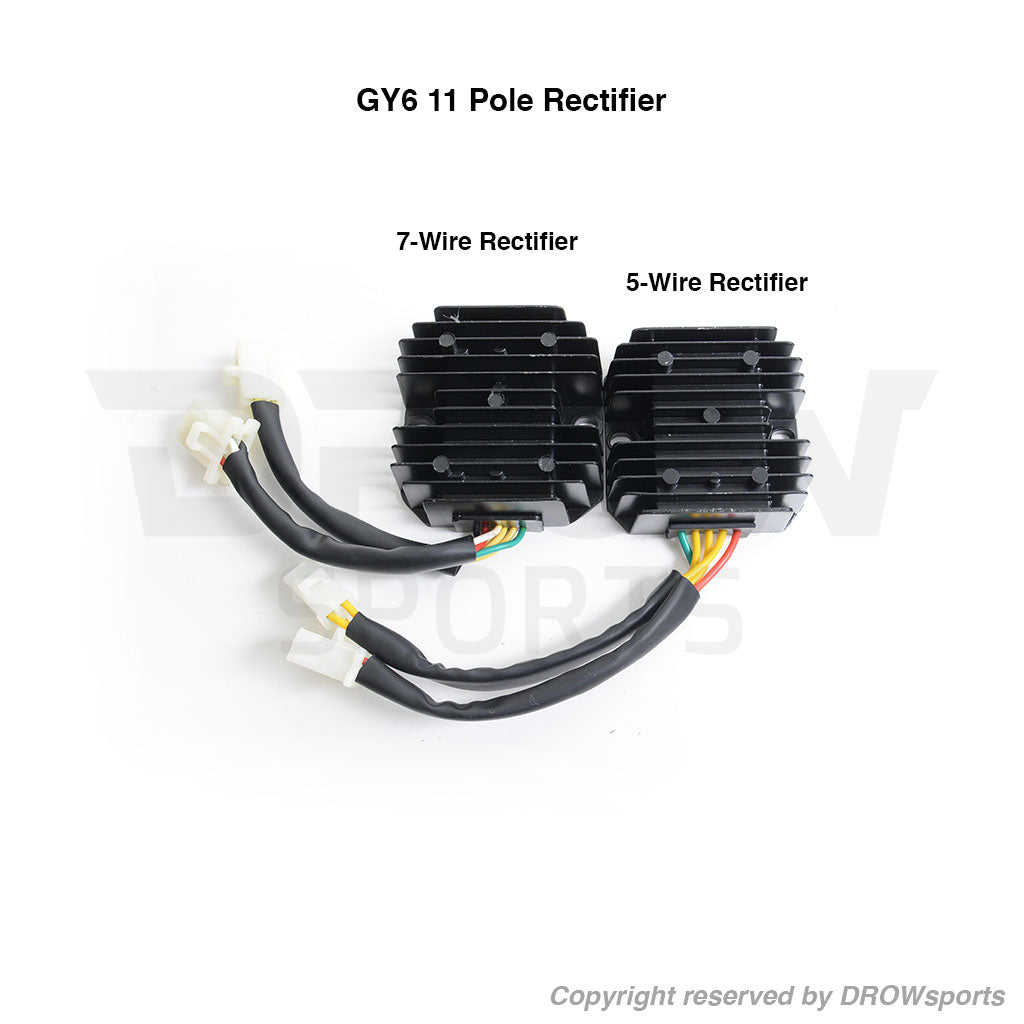

New GY6 150 11 Pole Rectifier Regulator 5-wire is a direct replacement for the commonly used 7 wire rectifier. We found that this 5 wire rectifier unit regulates the voltage better for Lithium batteries. We tested over 5 different 7-wire rectifiers and they all get voltage-creep from 14.9-15.9v on long high RPM rides which will damage Lithium batteries. This 5-wire Rectifier has been tested for over 3 years and it's the only rectifier we use for our DROWsports GY6 swap harness.

GY6 150cc engines. This 5 wire Rectifier is required for those who going to upgrade their stator to a stronger charging 11 Pole Stator. This is the most efficient method to run everything on your scooter without having battery draining issues. It will run all your lights, turn signals, and starters much easier than the already installed 8 Pole. A much-required upgrade when installing any GY6 150cc motor. Please keep in mind to always check the voltage after installing this item, the voltage should be anywhere from 13v to a maximum of 14.9v. If the voltage is 15v or above, please be sure to double-check your charging system and keep an eye on it.

Applications:

• GY6 125cc and 150cc
• GY6 11 Pole/Coil Stator
• NEW 5-Wire
• Direct replacement for 7-wire 11 pole rectifier.

• Electrical items are non-returnable, please check specifications before ordering.
• Wiring is required if upgrading from a 6 or 8 pole stator.
