KOSO RX-3 TFT Multi-function Meter

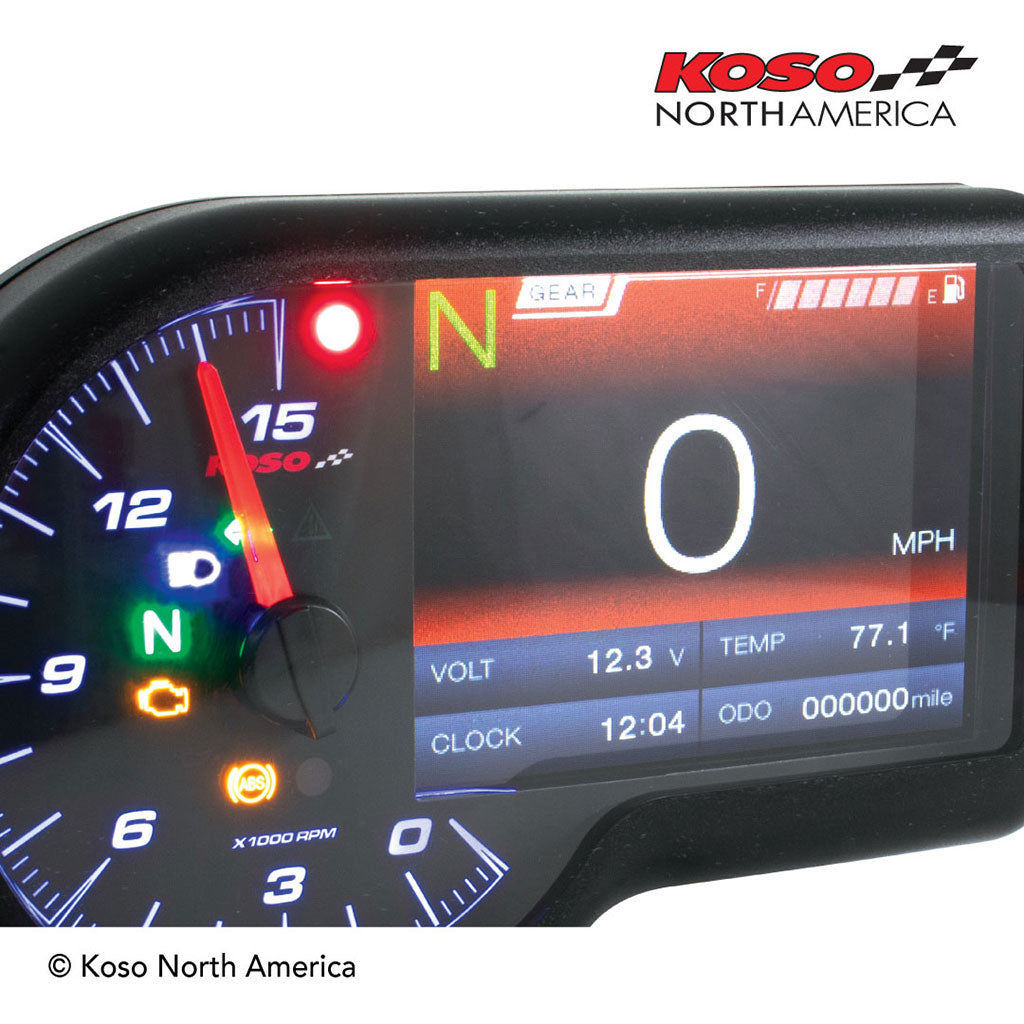

The RX-3 TFT multifunction meter is the newest addition to our RX series of gauges. It features a modern TFT screen to display your information with the day and night brightness adjustability and also has 5 differents colors to choose from.

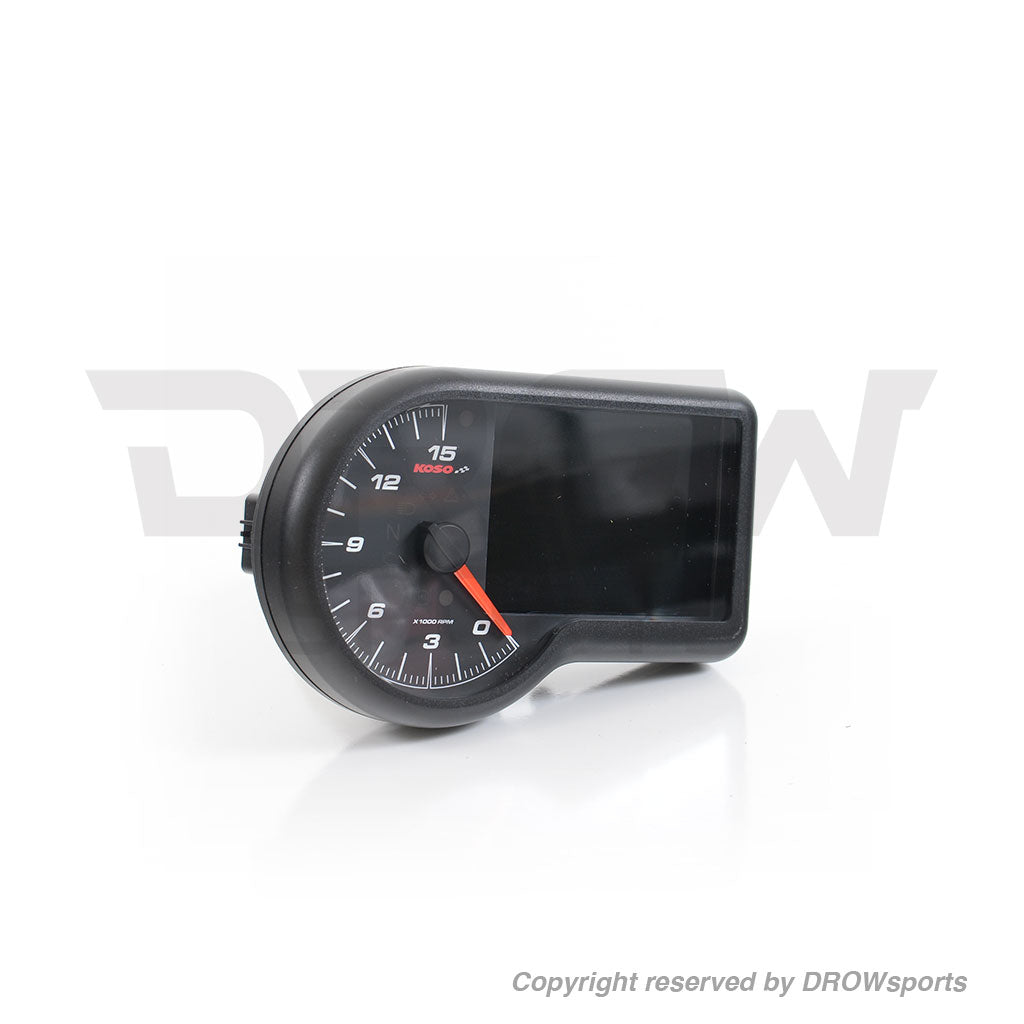

Compact, lightweight and easy to operate, this modern meter offers a clean and simple design. This universal gauge can be used for any application and also features a plug and play connector available for the Honda Grom® and the Honda Monkey® (to be purchased separately).

Specifications:

• Speedometer: R: 0 ~ 225 MPH (0 ~ 360 km/h) U: 1 MPH or km/h (alternative)

• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)

• Tripmeter A/B
  R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km)

• Oil maintenace: R: 300 ~ 10,000 miles (500 ~ 16,000km), OFF U: 100 miles (km)

• Speeding warning light R: 20 ~ 225 MPH (30 ~ 360 km/h)U: 1 MPH(km)

• Top speed record R: 0 ~ 225 MPH (0 ~ 360 km/h)

• Tire circumference: R: 300 ~ 2,500 mm | U: 1 mm Sensitive point: 1 ~ 40

• Gear indicator (learning): R: -, N, 1 ~ the highest gear (the highest gear based on the gear learning)

• Tachometer R: 0 ~ 15,000 RPM

• RPM shift‑light R: 1,000 ~ 15,000 RPM | U: 100 RPM display light: steady or fast flash

• Max. RPM R: 0 ~ 15,000

• RPM input signal number setting R: 0.5, 1 ~ 24

• RPM input pulse R: Low-Act, High-Ac

• Thermometer R: 32.0 ~ 482.0 ˚F (0 ~ 250 ˚C) U: 0.1 °C (°F)

• Over Temperature warning R: 140 ~ 482°F (60 ~ 250°C) | U: 1°F (°C)

• A/F ratio meter R: 12.1 ~ 17.5 | U: 0.1

• Fuel meter R: 6 levels | U: 1 level = 16.6 %

• Fuel resistance R: OFF, 100 Ω, 250 Ω, 270 Ω, 510 Ω, 1200 Ω, SW, learning mode, OFF

• Low fuel warning R: 0 ~ 3/6 | U: 1

• Clock R: 24 H / 12 H format

• Voltmeter R: DC 8.0 ~ 18.0 V | U: DC 0.1 V

• Low voltage warning R: DC 8.0 ~ 13.0 V | U: 0.1

• High voltage warning R: DC 13.1 ~ 18.0 V | U: 0.1

• Target speed D: 20 ~ 225 MPH (30 ~ 360 km/h) R: 5 MPH (km/h)

• Target distance D: 1/32 ~ 30/32 mile (50 ~ 1,500 m) U: 1/32 mile (50 m)

• Top speed R: Speed : 0 ~ 360 km/h (0 ~ 225 MPH) Distance : 0 ~ 999 m (0~3,280 feet) RPM : 0 ~ 15,000 RPM Time : 0 ~ 9 : 59”99

• Background display R: Auto (switch according to the ambient light: Day mode / Night mode.)

• Backlight brightness (Night) R: 1/5(Darkest) ~ 5/5(Brightest) | U: 1/5

• Backlight colors R: white, red, orange, green, blue

• Indicator lights R: Neutral / High beam / Turn signals / Check engine Oil level / ABS / Warning / RPM shift light

• Effective temperature range R: 14 ~ 140 °F (‑10 ~ 60 °C)

• Effective voltage DC 12 V
