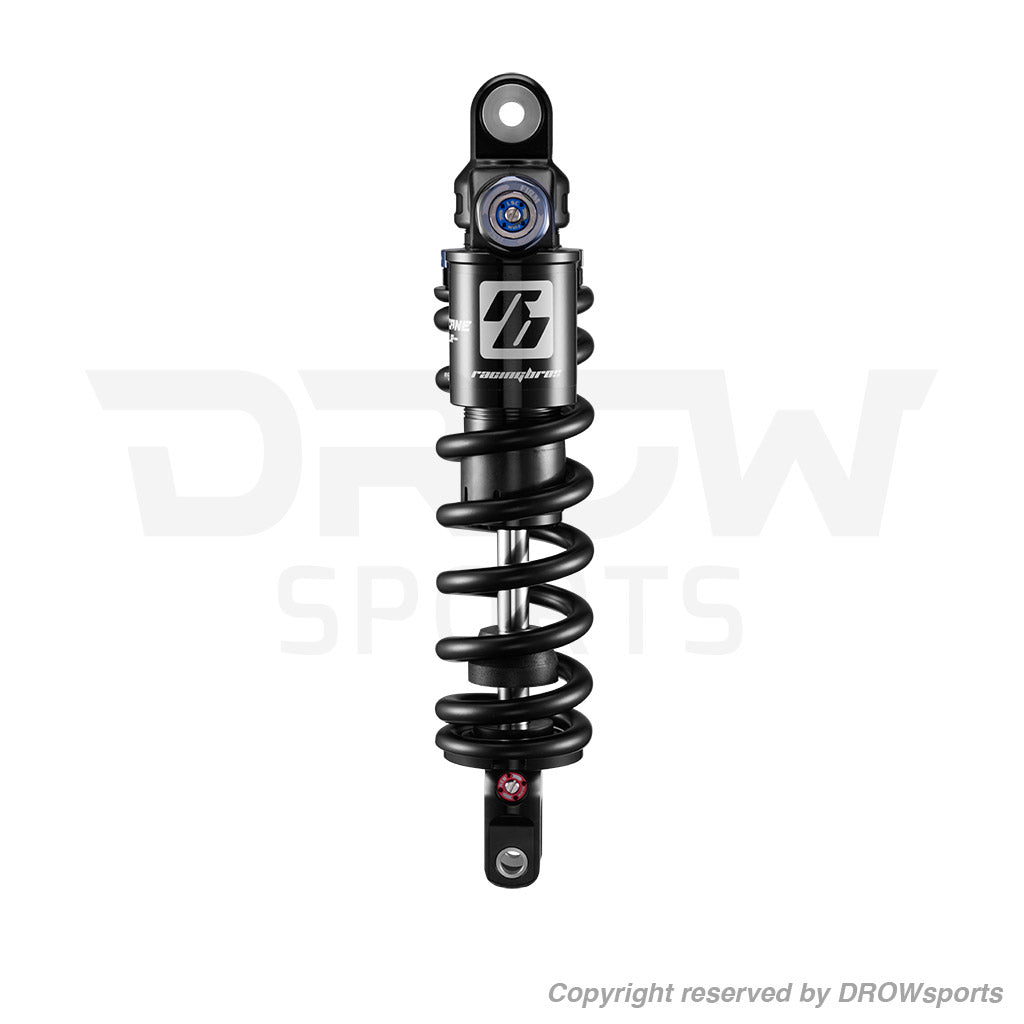

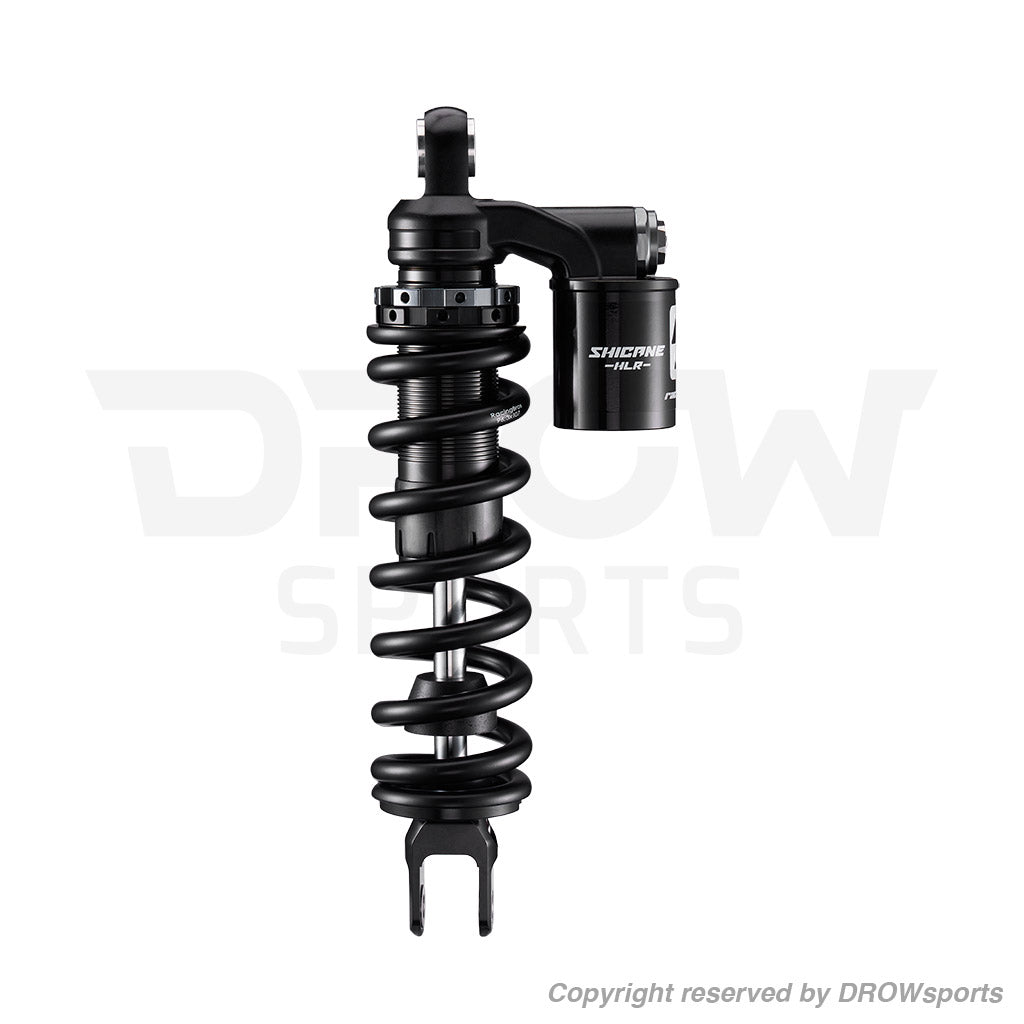

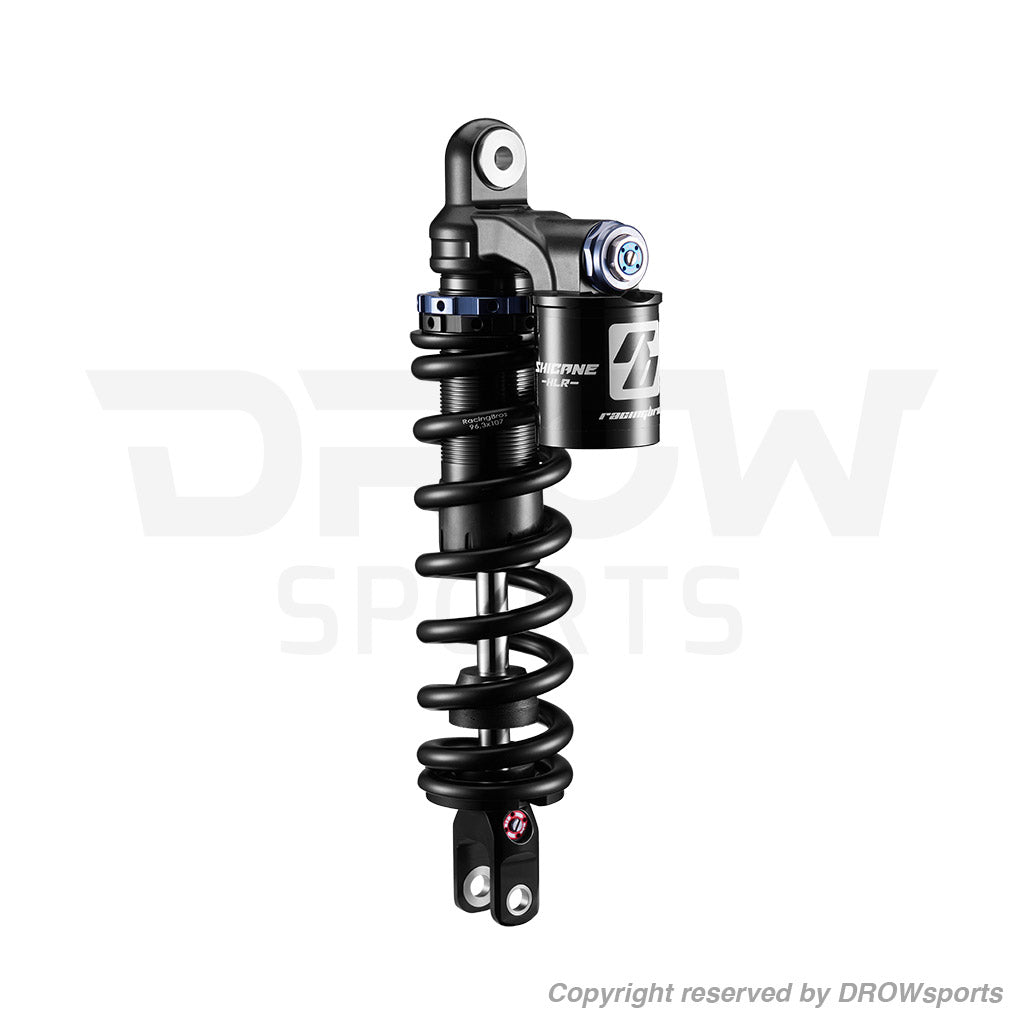

RacingBros SHICANE HLR Rear Shock

The stock Ultra Bee shock runs out of control fast when you start using the bike’s torque on rough ground. The RacingBros SHICANE HLR replaces it with a fully adjustable rear shock that has real high/low-speed damping. It’s built specifically for the Ultra Bee.

At its core is RacingBros’ co-axial compression system, which gives you 24 clicks each of independent high-speed and low-speed compression. Add 24-click rebound and you can tune square-edge hits, braking bumps, and traction separately instead of trading one against another.

A bladder oil/gas separation design with an extra-large reservoir keeps the shock sensitive and the damping consistent through long, hard runs. Speed-adaptive valving and a CNC-machined 7075-T6 piston keep it predictable at every shaft speed.

Hardware is built to last. It has a cold-forged 6061-T6 damper body, a 14mm super-chrome shaft, a heavy-duty spherical bearing, and an MCU bump stop. The JIS G3560 Cr-Si spring is 5–8% lighter than a standard steel spring.

Key Features:

Co-axial high/low-speed compression, 24 clicks each
24-click adjustable rebound
Adjustable spring preload
Bladder oil/gas separation with extra-large reservoir
Speed-adaptive valving
CNC-machined 7075-T6 aluminum piston
Cold-forged 6061-T6 damper body
14mm super-chrome shaft
Heavy-duty spherical bearing
Ultra-strong MCU bumper
JIS G3560 Cr-Si spring, 5–8% lighter than standard

Specifications:

Spec	Value
Length (Eye-to-Eye)	320mm (12.6 in)
Shaft Diameter	14mm
Body	6061-T6 cold-forged
Piston	7075-T6 CNC-machined
Reservoir	Bladder oil/gas separation
Low-Speed Rebound	24 clicks (±3)
High-Speed Compression	24 clicks (±3)
Low-Speed Compression	24 clicks (±3)
Spring Rates	80 / 87.5 / 96.3 / 105 N/mm
