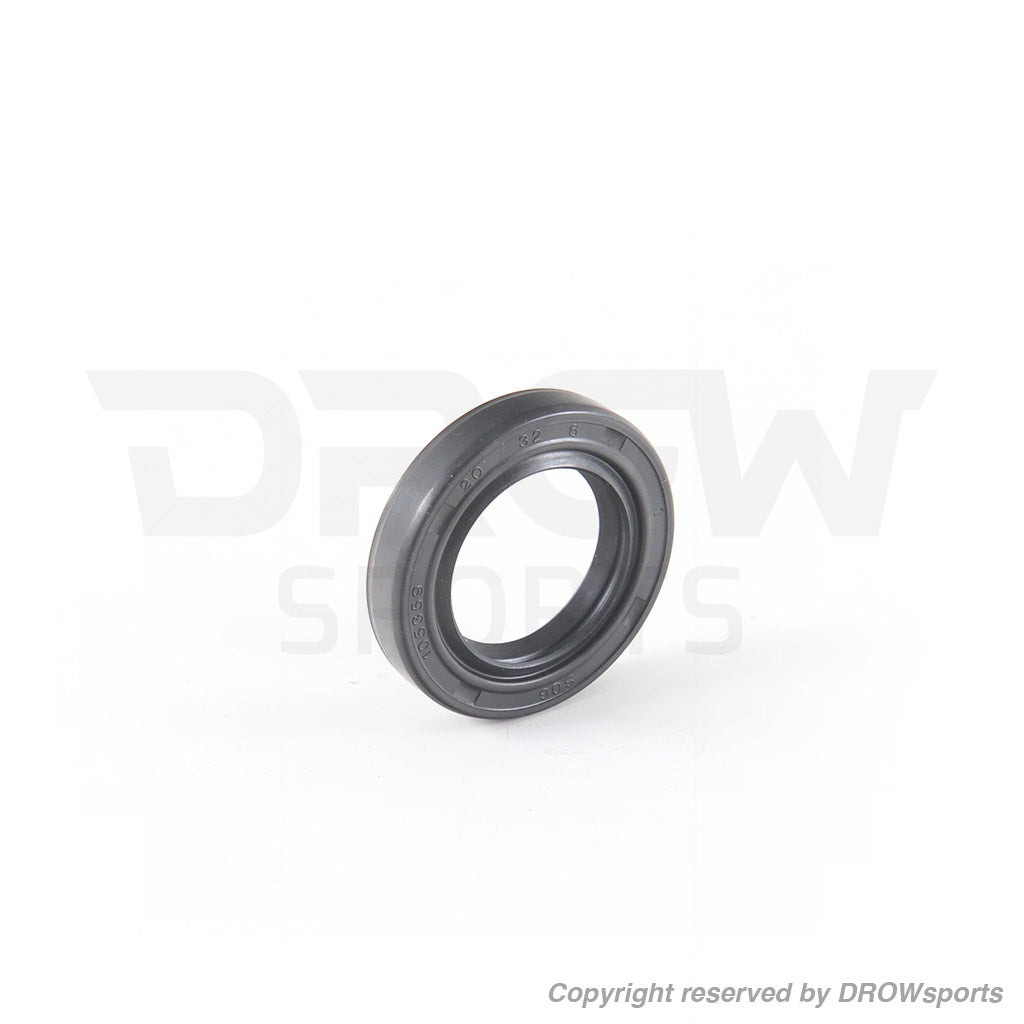

RZR 170 Rear Primary Output Shaft Oil Seal (20x32x6) #25

This is the oil seal riding on the rear primary output shaft of your Polaris RZR 170's transmission — the one keeping gear oil sealed inside the case and dirt, water, and debris out of your driveline path.

If you're seeing a leak where the output shaft exits the transmission, spotting oil weeping onto the driveline, or you're already in there for a transmission or output shaft job, replace this seal. It's a small, inexpensive part that's a pain to get back to once everything's buttoned up — so do it while you're in there. A worn seal doesn't just make a mess; letting gear oil drain and contaminants creep in is how you cook a transmission.

Sized 20x32x6mm (20mm ID x 32mm OD x 6mm width) to match the factory seal. Press it in and you're sealed back up.

Key Features:

• Direct-fit oil seal for the RZR 170 rear primary output shaft
• 20x32x6mm — matches OEM dimensions
• Seals transmission gear oil in and contaminants out
• Must-replace any time you service the output shaft or open the transmission
• Reference position #25 / Polaris part# 0452340

Specs:

• Inner diameter: 20mm
• Outer diameter: 32mm
• Width: 6mm
• Location: Rear primary output shaft, transmission
• Material: NBR w/ spring
• Replaces OEM part#: 0452340
