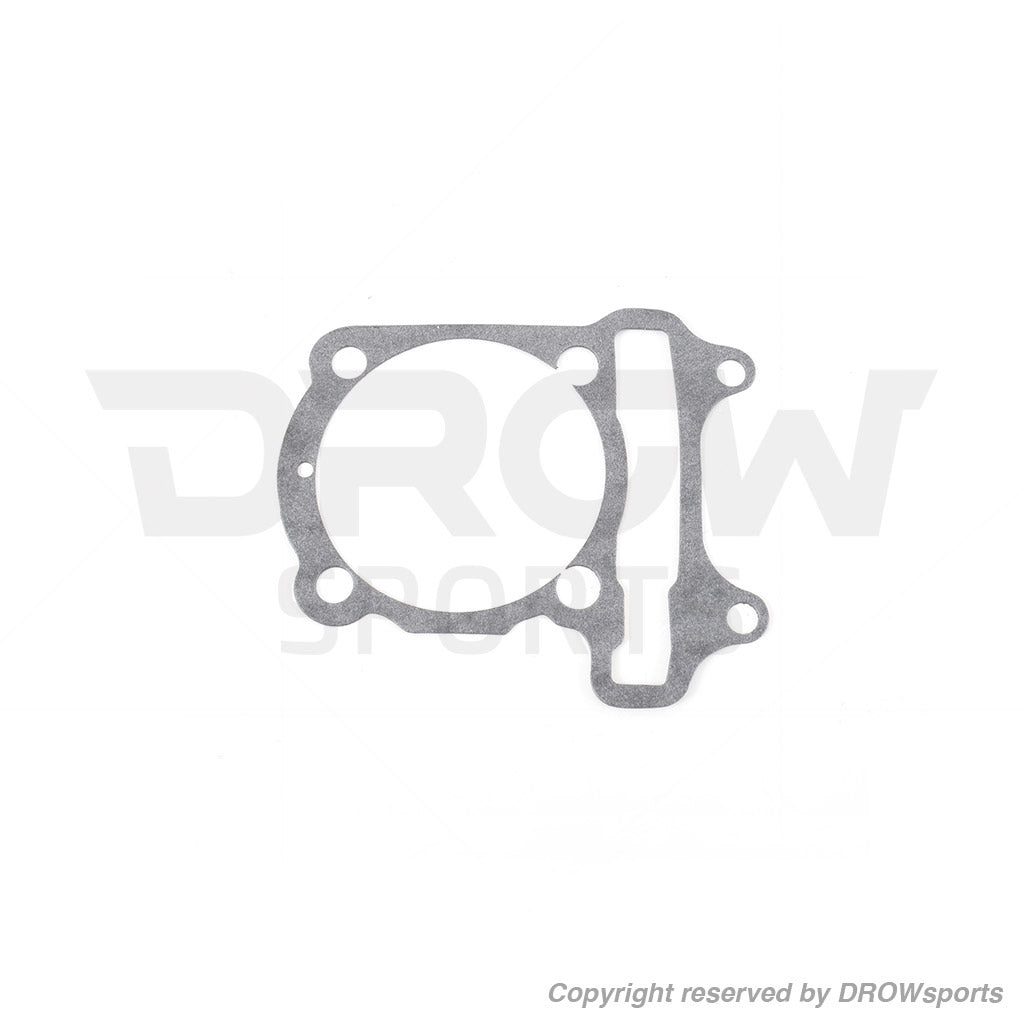

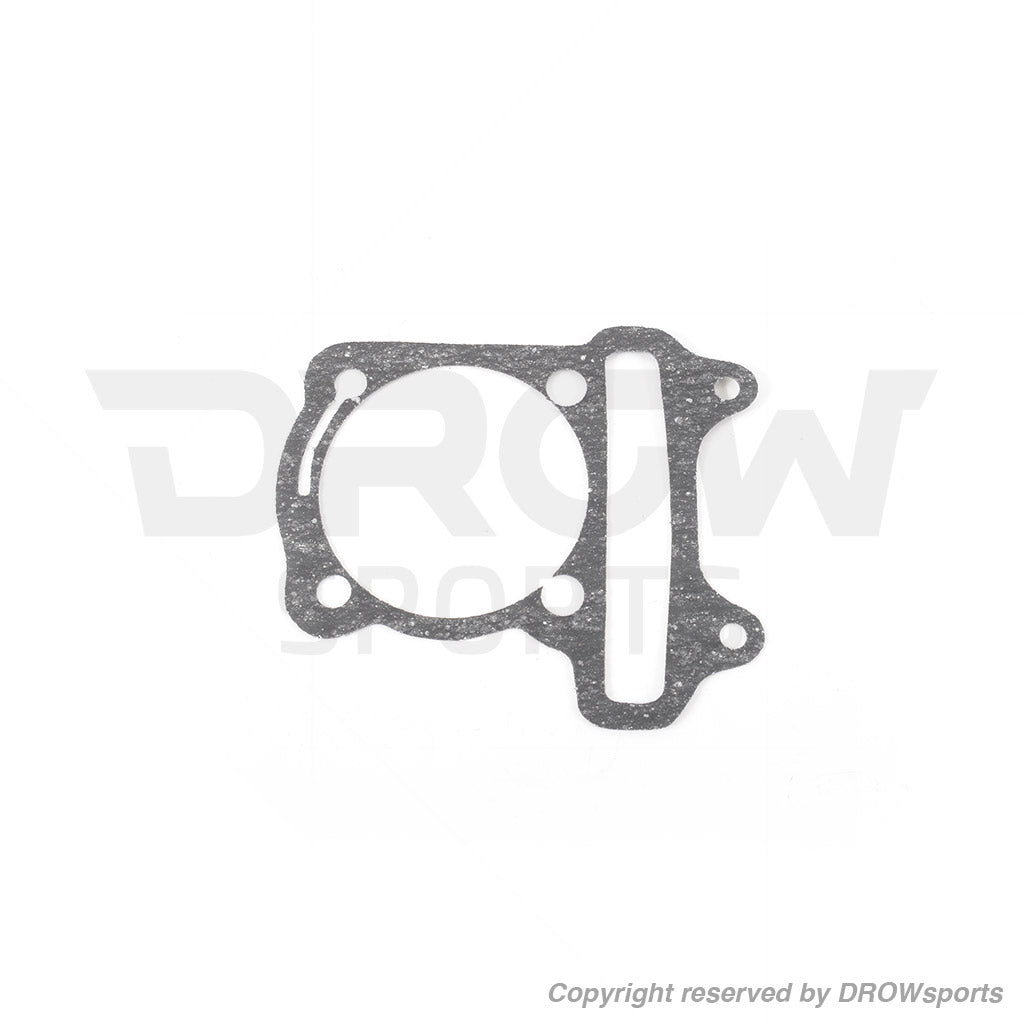

Taida RZR 170 / GY6 150 Cylinder Base Gasket (57mm Spacing)

This is the cylinder base gasket from Taida. It’s the seal between the cylinder and the crankcase on B-case GY6 engines with 57mm stud spacing, and that includes the 169cc motor in the Polaris RZR 170. It’s a thin part, but it seals crankcase pressure and oil at the bottom of the jug. Its thickness also sets your deck height, which affects compression and piston-to-valve clearance.

A leaking base gasket shows up as oil weeping around the bottom of the cylinder. You may also see crankcase pressure blowing past, or a top end that won’t hold a seal after a rebuild. This is a one-time-use part. Once the cylinder has been torqued down and heat-cycled, the gasket is crushed and won’t seal again. If the jug comes off, a new base gasket goes on.

Fits:

• Polaris RZR 170 2009-2020
• GY6 B-case engines with 57mm cylinder stud spacing
• Taida 57mm-spacing cylinder kits

Specs:

• Brand: Taida
• Type: Cylinder base gasket (cylinder-to-crankcase)
• Stud spacing: 57mm center-to-center (B-case)

• Thickness: 0.50mm
• Material: Paper
